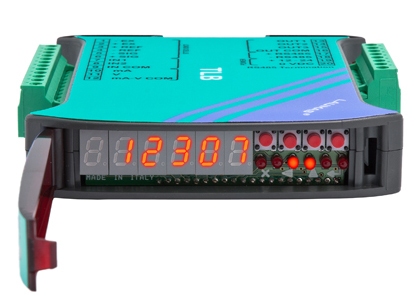

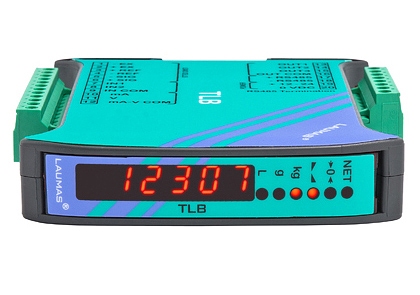

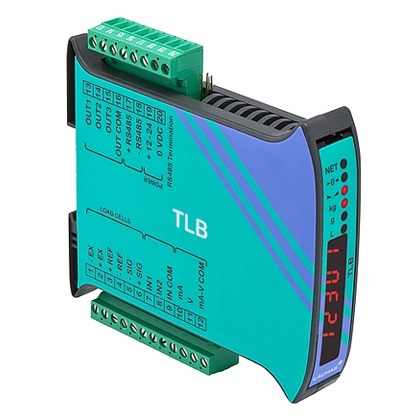

TLB RS485 Load Cell Transmitter, Analog, Fieldbus, and Ethernet Options

$250.00$565.00

Din-rail mounted load cell transmitter / amplifier, analog output, fieldbus, and Ethernet options available.

Programming Cable

Connects device to the free Instrument Manager Setup Software

RS485 to USB adaptor with 6' cable

Accessories

Load cell simulator to aid in setup and troubleshooting

Wall power adapter 115VAC to 24VDC 1A, 8' cable

Product price: $250.00
Order total:

Description

Load Cell Systems offers the TLB din-rail or panel mounted load cell transmitter,  optional analog output current: 0-20 A, 4-20mA and voltage: +/-10V, +/-5V.  Standard wtih RS485 digital output (Modbus RTU / ASCII protocol) for communications with a PLC or remote display.  The 5V excitation can drive up to 8 (350Ω) load cells through a junction box.  The TLB is ideal for system integrators, the din-rail mounted device is compact taking up little room in electrical panels.  The Fieldbus options allows communications to large industrial networks.



Features:

  • 12-24VDC Operational
  • Din-Rail or Panel Mount
  • 24 Bit A/D Converter, 4,800Hz
  • Analog Output (4-20mA, 0-5V, 0-10V) 16 Bit Resolution
  • RS485 Modbus RTU / ASCII Protocol
  • 3 Relay Outputs
  • 2 Digital Inputs

Optional Analog, Ethernet, and Field Bus Communication:

  • Analog ouptut 4-20mA or +/-10VDC
  • CANopen
  • DeviceNet
  • CC-LINK
  • Profibus DP
  • Modbus/TCP
  • Ethernet TCP/IP viewable by internet web browser on local network and worldwide web
  • 2x Ethernet IP ports
  • 2x Profinet IO ports
  • 2x PROFINET IO ports
  • 2x  POWERLINK ports
  • 2x SERCOS III ports

Additional information

Weight 1 lbs
Dimensions 8 × 8 × 8 in
TLB Variations

TLB485, TLB, TLBETHEIPN, TLBETHETCP, TLBCANOPEN, TLBDEVICENET, TLBCCLINK, TLBSERCOS, TLBPROFI, TLBMODBUSTCP, TLBPROFINETION, TLBETHERCAT, TLBPOWERLINK

TLB Datasheet

TLB Manual

TLB Protocols Manual
