FUN Series Wire Rope / Cable Clamp On Load Cells for Cranes & Hoists


Wire rope clamp-on load cell for crane and hoist applications, overload protection.

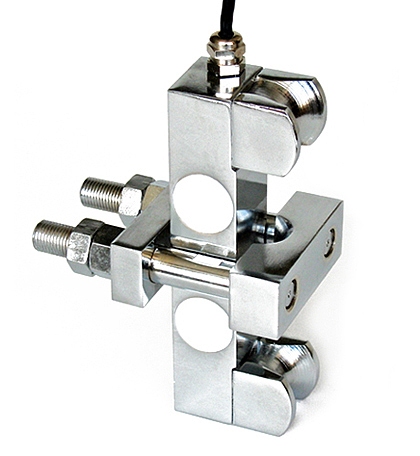

Load Cell Systems model FUN Series load limiter clamp-on load cell for cable / wire rope is designed for crane and hoist applications typically installed on the dead end of the cable.  sealed to IP67 this load cell is suitable for industrial environments.  The FUN clamp-on load cell can be used to prevent slack cable and overload conditions when paired with the appropriate load cell electronics with setpoint relay control, and also be paired with a large digit scoreboard to display the weight on the hook.  By using electronics that has multi-point linearization capabilities the calibration can be done in the field with multiple known weights to improve the overall accuracy of the load limiting crane scale system.

Capacity   |  Wire Rope Diameter
2,000 kg        6-14 mm
4,000 kg        10-18 mm
10,000 kg      16-26 mm
20,000 kg      24-36 mm
40,000 kg      24-36 mm

Additional information

Capacity KG

10,000 kg, 2,000 kg, 20,000 kg, 4,000 kg, 40,000 kg

FUN Datasheet
