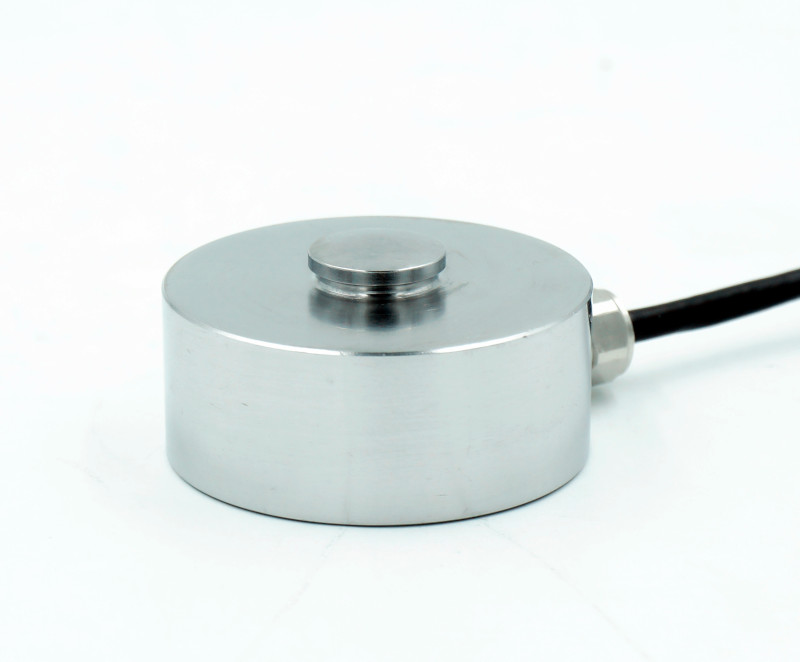

MCL-02 Miniature Compression Button Load Cell – Capacities from 1 to 100 KN (225 to 22,481 lbs)

$325.00 – $355.00

High accuracy miniature load cells, 0.2% non-linearity.

SKU: N/A Categories: ,

Description

Miniature compression load cell manufactured from 17-4 stainless steel achieves a non-linearity specification of 0.2% of full scale capacity.  Supplied with 4 meter cable. This miniature load cell ideal for robotics, press force monitoring, and other limited space applications.  The MCL-02 is sealed to IP67, suitable for washdown environments.

Choose the MCL-02 miniature compression load cell for your weighing and force measurement applications.

Additional information

Capacity Newtons

1 KN (225 lb), 10 KN (2,248 lb), 100 KN (22,481 lb), 2 KN (450 lb), 20 KN (4,496 lb), 30 KN (6,744 lb), 5 KN (1,124 lb), 50 KN (11,240 lb)

MCL-02 Datasheet

Download File
