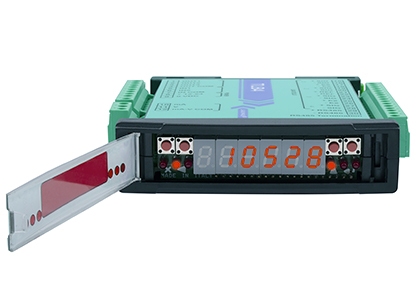

TLB4 RS485 Multi-Channel Load Cell Transmitter – Analog, Fieldbus, and Ethernet Optional

$290.00$605.00

Din-rail or panel mount load cell transmitter, analog output, Modbus, and Ethernet options available.

Programming Cable

Connects device to the free Instrument Manager Setup Software

RS485 to USB adaptor with 6' cable

Accessories

Load cell simulator to aid in setup and troubleshooting

Wall power adapter 115VAC to 24VDC 1A, 8' cable

Product price: $290.00
Order total:

Description

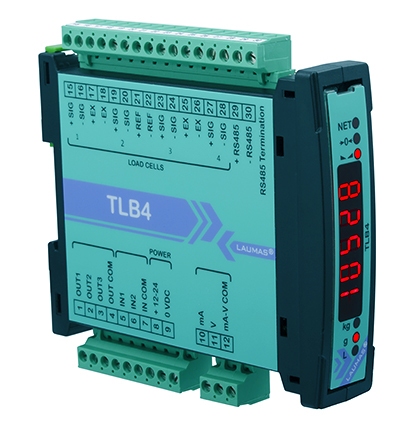

Load Cell Systems offers the TLB4 din-rail or panel mounted multi-channel load cell transmitter,  optional analog output current: 0-20 A, 4-20mA and voltage: +/-10V, +/-5V.  Standard wtih RS485 digital output (Modbus RTU / ASCII protocol) for communications with a PLC or remote display.  The 5V excitation can drive up to 8 (350Ω) load cells through a junction box.  The Laumas TLB4 is ideal for system integrators, the din-rail mounted device is compact taking up little room in electrical panels.  The Fieldbus options allows communications to large industrial networks.



Features:

  • 4-Channel Strain Gage Load Cell Transmitter
  • 12-24VDC Operational

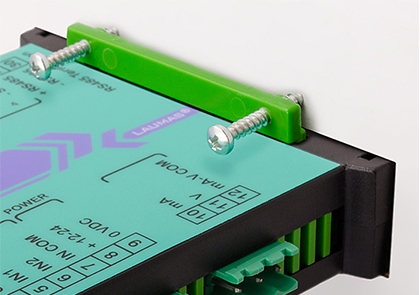

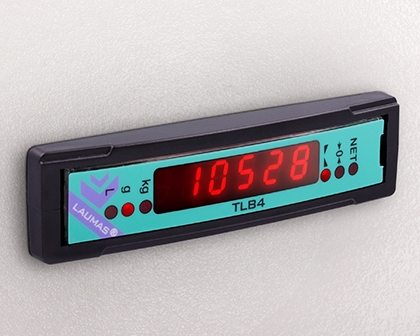

  • Din-Rail or Panel Mount
  • 24 Bit A/D Converter, 4,800Hz
  • RS485 Modbus RTU / ASCII Protocol
  • 3 Relay Outputs
  • 2 Digital Inputs

Optional Analog, Ethernet, and Field Bus Communication:

  • Analog ouptut 4-20mA or +/-10VDC
  • CANopen
  • DeviceNet
  • CC-LINK
  • Profibus DP
  • Modbus/TCP

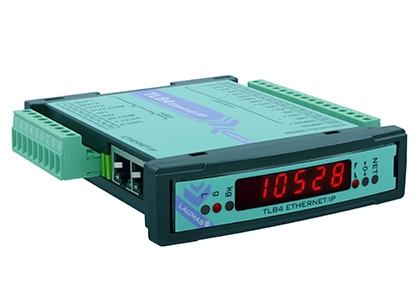

  • Ethernet TCP/IP viewable by internet web browser on local network and worldwide web
  • 2x Ethernet IP ports
  • 2x Profinet IO ports
  • 2x PROFINET IO ports
  • 2x  POWERLINK ports
  • 2x SERCOS III ports

Additional information

Weight N/A
Dimensions N/A
TLB4 Variations

TLB4, TLB4ETHEIP, TLB4ETHETCP, TLB4ETHERCAT, TLB4RS485, TLB4PROFIBUS, TLB4MODBUSTCP, TLB4PROFINETIO, TLB4SERCOS, TLB4POWERLINK, TLB4CANOPEN, TLB4CCLINK, TLB4DEVICENET

TLB4 Datasheet

TLB4 Manual

TLB4 Protocols Manual
