T24-ACMi Miniature Wireless Transducer Transmitter 2.4 GHz

$565.00

Wireless load cell & other process control signals transmitter.

Description

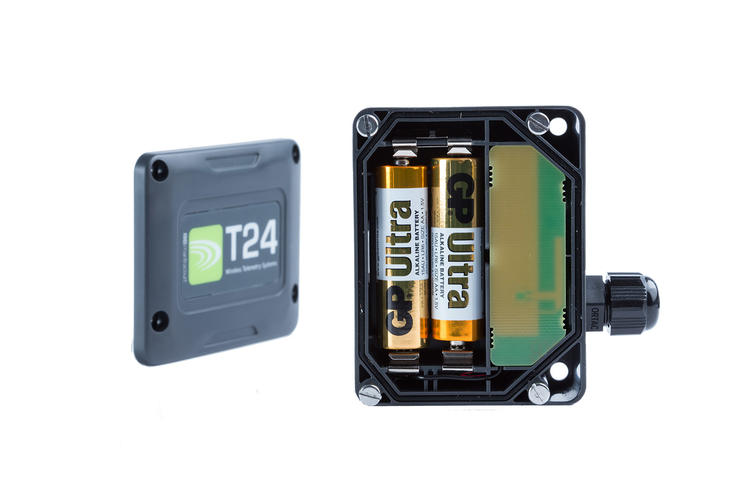

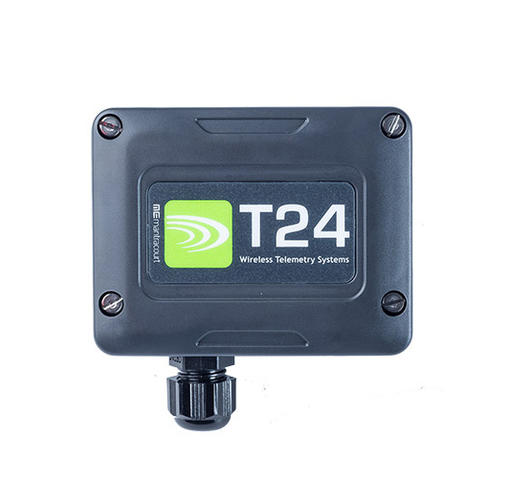

Load Cell Systems T24-ACMi miniature wireless sensor transmitter is designed for load cells, (mV/V output) pressure transducers, and various other sensors with an analog output.  It’s easy to create a wireless load cell system or transmit analog signals to other T24 receivers.  The T24-ACMi is enclosed in a rugged industrial enclosure, powered from two AA batteries allowing up to 5 years between battery changes.

Wireless Transmitter Input Signals:

  • mV/V from load cells, pressure transducers
  • 0-5 or 0-10 VDC
  • 4-20 mA
  • Potentiometer
  • Temperature
  • Pulse

Features:

  • Waterproof IP67 rated enclosure
  • Long battery life supplied by two AA batteries
  • Up to 800 meter (line of sight) transmission range
  • Able to turn the transmitter ON or OFF from various T24 receivers

Case Study:

A factory needed a few wireless S-type load cells for an application requiring tension measurement.  Our standard S-type was customized by attaching a T24-ACMi wireless load cell transmitter.  The signal was transmitted to a T24-HA handheld load cell display where they could see the individual weights on each load cell and the sum of the weight.
This is a common application for the S-type and wireless transmitter, many applications are not able to have the cable run from the load cell to the reading instrument.

Additional information

Weight N/A
Dimensions N/A
T24 Transmitter Variations

-IA (4-20mA input), -PA (pulse input), -RA (potentiometer input), -SA (load cell input), -TA (temperature input), -VA (0-10V input)

T24-ACM Enclosure Comparison
